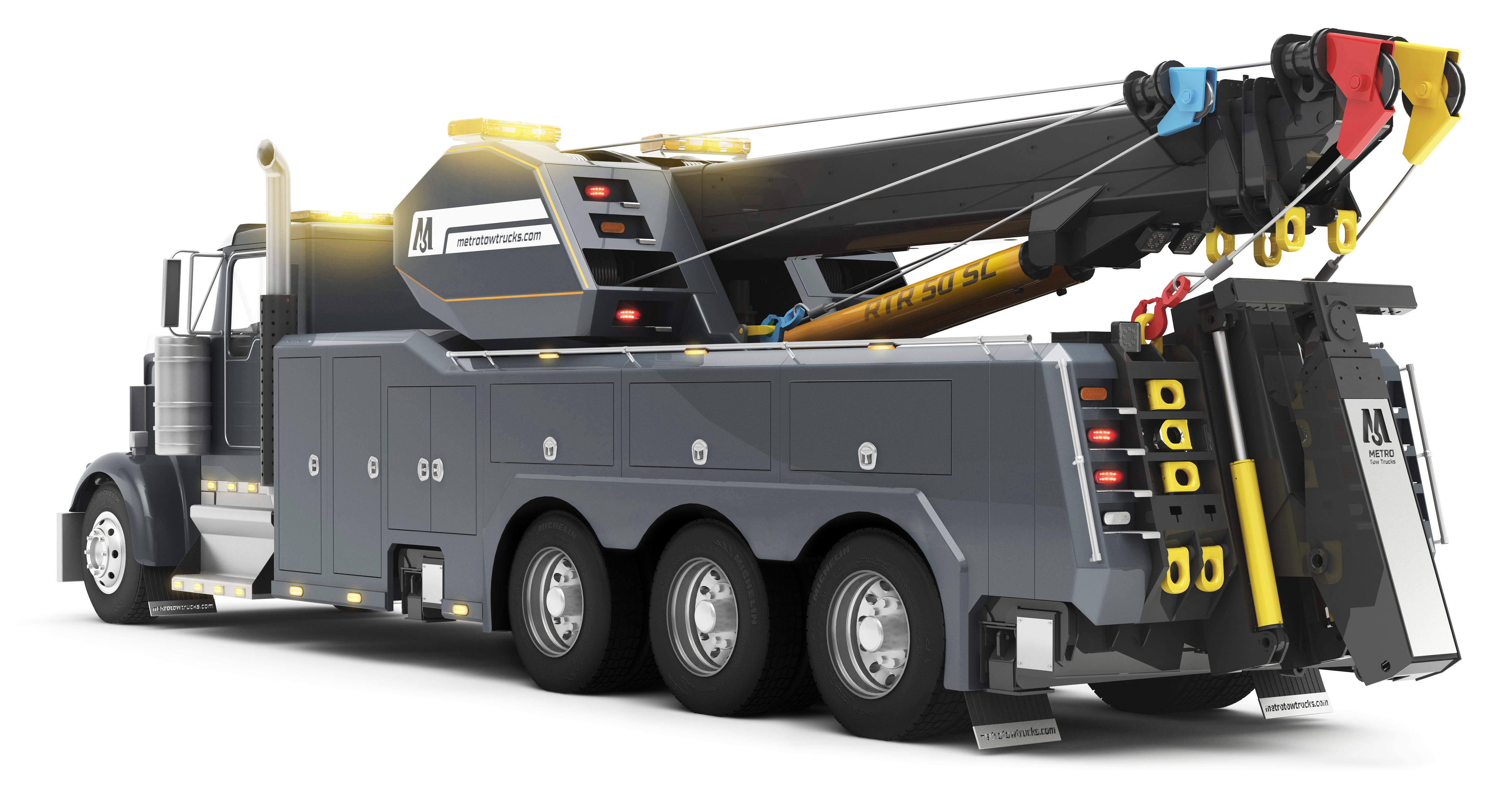

RTR-50
Practicality and Versatility
Metro’s versatile RTR-50, designed for heavy duty, reaches the perfect balance between size and capacity. With the 360° continuous motion and the sliding option this unit can reach and lift in any situation you will encounter.
Unit weight without chassis: 20,700 kg (45,600 lbs)
Standard Features
- 5476 mm (216’’) Cab to centre of tandem standard steel body
- 2 x 25 ton (55,000 lbs) winches
- 1 set of frame fork holders and 4 sets of frame forks
- Safety chains
- Frame fork and chain racks
- Chrome door handle
- Air and 12V/24V outputs
- Non slide configuration
Options
- Complete wireless remote control
- Proportional remote control
- Slide configuration
- 2 additional 20 ton (44,000 lbs) winches
- 609 mm (24"), 762 mm (30"), 914 mm (36"), 1219 mm (48"), 1828 mm (72") tunnel box
- Tailboard controls
- Extra frame forks
- Wheel lift receivers for single / double tires
- Full recovery tool package
- Custom storage system
- Aluminum / Composite body
- European body style
- Gravel guard undercoating finish
- Front push bumper
- Front winch and Drag winch
- XP, X-shape side puller
- A-arm style side winches
- Steel core rope
- Chrome hand rails
- In cab controls
- Full size LED light bar
- LED - working lights, strobe lights, lights inside toolbox
- Custom painting
- Installation services and extended warranty
- Tow operators education & training
Gallery
Line Drawing
NOTE: Axle configuration is subject to local laws and regulations. All information in this document is for reference purposes only. Optional configuration might be shown.
Specifications
Underlift Specifications / * = Euro Option
Retracted capacity on forks 22.5 ton (50,000 lbs) / * same
Retracted distance to the forks 1844 mm (73″) / * same
Extended capacity on forks 5.6 ton (12,300 lbs) / * same
Extended distance to the forks 3700 mm (146″) / * 3811 mm (150″)
Negative tilt angle -8°
Tow Rating 36 ton (80,000 lbs)
Boom Specifications
Retracted capacity (at 70°) 50 ton (110,200 lbs)
Extended capacity (at 70°) 12.5 ton (27,550 lbs)
Maximum Lift angle 70°
Maximum Hook Height 13077 mm (515″)
Reach Past Tailboard 6947 mm (273″) Slider Option
Vehicle Recommendations
Front axle(s) weight (min) 9 ton (20,000 lbs)
Rear axle(s) weight (min) 9 ton (20,000 lbs)
+ 2 x 10.4 ton (23,000 lbs)
Reccomended Tire size R24,5
Clear CA 5476 mm (216”)
Winch Specifications
Quantity 2 pcs
Pulling force (on 1st layer) 25 ton (55,000 lbs)
& optional 20 ton (44,000 lbs)
Winch type Planetary
Cable length 22 mm x 60 m (7/8″ x 200′)
optional 19 mm x 60 m (3/4″ x 200′)
Some optional equipment may be shown.
All ratings are based on structural and design factors only. Vehicle chassis capacity and capabilities can vary significantly, affecting the overall performance and rating of the unit. All chassis specifications are minimums, heavier specifications may be required depending on chassis and equipment weights. Please contact your nearest distributor for additional information.
Metro Tow Trucks Co. reserves the right to change, improve or modify products, which may change the specifications, models and feature availability at any time without notice and without obligation. Please contact your nearest distributor for additional information.
