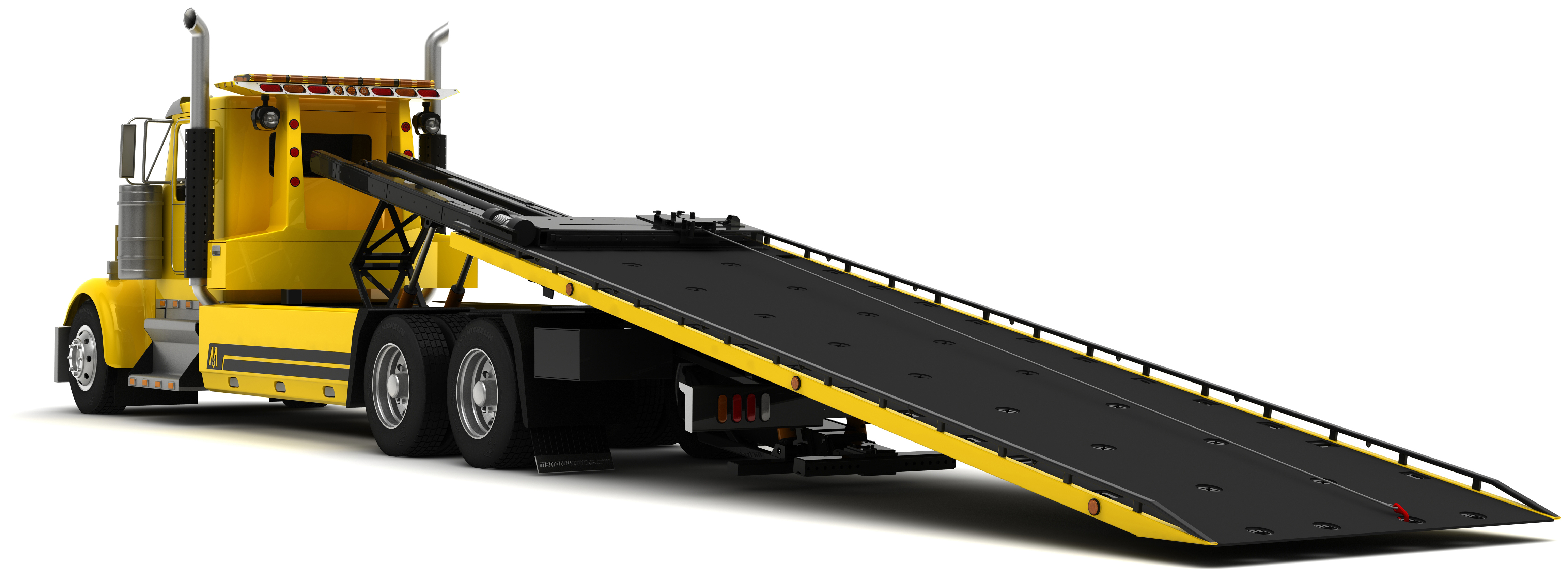

FB-20

Heavy Duty Platform

With an 18 ton capacity, the FB-20 will carry almost anything. The strong wheel lift and platform will be able to handle any calls you may get. The large deck will give you the carrying space you need. You will be surprised how affordable this equipment is.

Unit weight without chassis:  6,500 kg (14,300 lbs)

Standard Features

Options

Reference Table

Minimum cab to axle clearance by deck length.

7315 mm (24′)  4216 mm (166”)
7620 mm (25′)  4318 mm (170”)
7924 mm (26′)  4622 mm (174”)
8534 mm (28′)  4826 mm (190”)
8839 mm (29′)  5029 mm (198”)
9144 mm (30′)  5232 mm (206”)
8678 mm (28.5′)  6000 mm (236′)

Gallery

Line Drawing

NOTE: Axle configuration is subject to local laws and regulations. All information in this document is for reference purposes only. Optional configuration might be shown.

Specifications

Underlift Specifications

Retracted capacity  15.8 ton (35,000 lbs.)
Extended capacity  7.9 ton (17,500 lbs.)
Negative tilt angle  -11°
Tow Rating 4.5 ton (10,000 lbs)

Deck Specifications

Deck length  7315 mm (24′) to 9144 mm (30′)
Deck rating  18 ton (40,000 lbs.)
Deck Tilt Angle  11°

Vehicle Recommendations

Front axle(s) weight (min)  6.6 ton (14,600 lbs.) to 9 ton (20,000 lbs.)
Rear axle(s) weight (min)  2 x 9 ton (20,000 lbs.) to 10.4 ton (23,000 lbs)
Recommended tire size  11 R 22.5 or 11 R 24.5
Clear CA   See reference table

Winch Specifications

Quantity  1 pcs
Pulling force (on 1st layer)  20 ton (44,000 lbs.)
Winch type  Planetary Gear
Cable length  19 mm x 60 m (3/4″ x 200′)

Some optional equipment may be shown.

All ratings are based on structural and design factors only. Vehicle chassis capacity and capabilities can vary significantly, affecting the overall performance and rating of the unit. All chassis specifications are minimums, heavier specifications may be required depending on chassis and equipment weights. Please contact your nearest distributor for additional information.

Metro Tow Trucks Co. reserves the right to change, improve or modify products, which may change the specifications, models and feature availability at any time without notice and without obligation. Please contact your nearest distributor for additional information.
