FB-15
Getting Serious
With a 9 ton rating, the FB-15 is a serious worker. There’s no need to refuse calls for heavier trucks anymore, you should be able to pick it up with the FB-15.
Unit weight without chassis: 6,100 kg (13,450 lbs)
Standard Features
- Choose your deck length from 5486 mm (18') to 9144 mm (30')
- Standard width of 2463 mm (97'')
- One 914 mm (36'') side toolbox
- Independent light pylon
- Chrome door handle
- Driver and passenger side manual controls
- Safety chains
Options
- Wireless remote control
- 1828 mm (72") side box
- 2590 mm (102") Wide bed
- Frame forks
- Wheel lift receivers for single / double tires
- Removable rails
- Full recovery tool package
- Custom storage system
- Front push bumper
- XP, X-shape side puller
- In cab controls
- Full size LED light bar
- LED - working lights, strobe lights, lights inside toolbox
- Custom painting
- Installation services and extended warranty
- Tow operators education & training
Reference Table
6705 mm (22′) 3810 mm (150”)
7010 mm (23′) 3962 mm (156”)
7315 mm (24′) 4216 mm (166”)
7620 mm (25′) 4318 mm (170”)
7924 mm (26′) 4622 mm (174”)
8010 mm (26.3′) 5182 mm (204″)
8534 mm (28′) 4826 mm (190”)
8839 mm (29′) 5029 mm (198”)
9144 mm (30′) 5232 mm (206”)

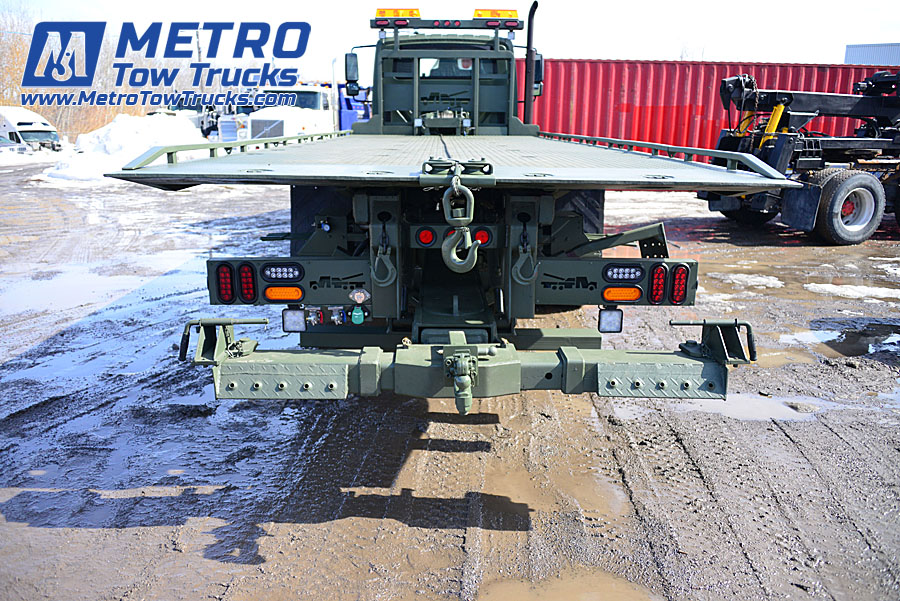

Gallery
Line Drawing
NOTE: Axle configuration is subject to local laws and regulations. All information in this document is for reference purposes only. Optional configuration might be shown.
Specifications

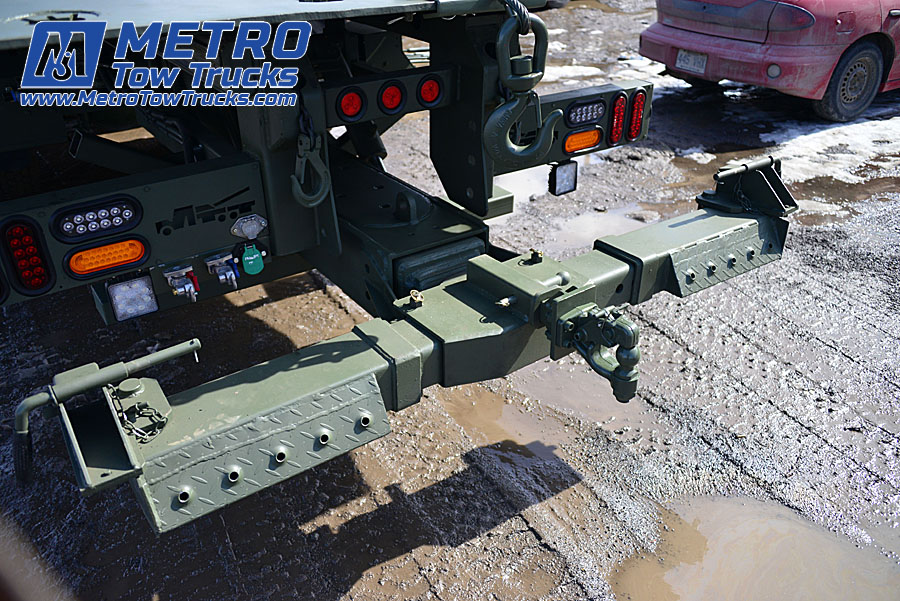

Underlift Specifications
Retracted capacity 8.1 ton (18,000 lbs.)
Extended capacity 4 ton (9,000 lbs.)
Negative tilt angle -15°
Tow Rating 4.5 ton (10,000 lbs)

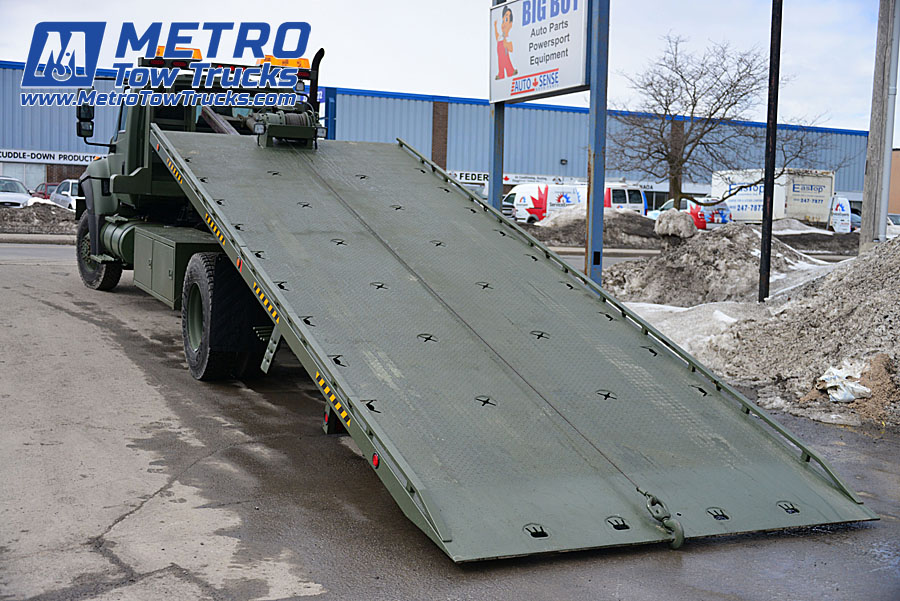

Deck Specifications
Deck length 6705 mm (22′) to 9144 mm (30′)
Deck rating 9 ton (20,000 lbs.)
Deck Tilt Angle 11°
Vehicle Recommendations
Front axle(s) weight (min) 5.4 ton (12,000 lbs)
Rear axle(s) weight (min) 10.4 ton (23,000 lbs)
Recommended tire size 11 R 22.5
Clear CA See reference table
Winch Specifications
Quantity 1 pcs
Pulling force (on 1st layer) 10 ton (22,000 lbs)
Winch type Planetary Gear
Cable length 16 mm x 30 m (5/8″ x 100′)
Some optional equipment may be shown.
All ratings are based on structural and design factors only. Vehicle chassis capacity and capabilities can vary significantly, affecting the overall performance and rating of the unit. All chassis specifications are minimums, heavier specifications may be required depending on chassis and equipment weights. Please contact your nearest distributor for additional information.
Metro Tow Trucks Co. reserves the right to change, improve or modify products, which may change the specifications, models and feature availability at any time without notice and without obligation. Please contact your nearest distributor for additional information.
